20X 2MP 100m IR Hikvision Network POE IP Speed Dome PTZ Camera DS-2DE4220IW-DE , Support 3D Intelligent Positioning Function

FOB Reference Price:Get Latest Price
$295.00 - $344.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Linovision/No name/OEM
Model Number:
DS-2DE4220IW-DE
Type:
IP Camera
Style:
Dome Camera
Sensor:
CMOS
Special Features:
Waterproof / Weatherproof
Effective Pixels:
1920(H) x1080(V)
Focal Length:
4.7-94.0mm(20x Optical zoom)
Wide dynamic range:
DWDR
Image Compression:
H.264/MJPEG
IR Distance:
100m
EZVIZ cloud P2P:
Support
Warranty:
2 years
Smart VCA Detection:
Support Intrusion / Line crossing Detection, Motion detection
Pan and Tilt Range:
Pan:360° endless; Tilt: - 15°~90°(Auto Flip)
Certificate:
FCC, CE, UL, RoHS, IEC/EN
Technology:
NetWork
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Neutral Box
Port
Shanghai
Lead Time :
Shipped in 15 days after payment



Key Features





>1/2.8’’ Progressive Scan CMOS

>1920 x 1080

>20X Optical Zoom

>DWDR

>3D intelligent positioning function

>Support EZVIZ cloud P2P

>Up to 100m IR distance

>12VDC power supply





Technical Datasheet

Model

DS-2DE4220IW-DE

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Effective Pixels

1920(H)x1080(V)

Signal System

PAL/NTSC

Minimum Illumination

F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux, 0 lux with IR

White Balance

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC

Auto/Manual

S/N Ratio

≥ 52dB

BLC

ON/OFF

HLC

Support

WDR

Support

Shutter Time

1-1/10,000s

Day& Night

ICR

Digital Zoom

16X

Privacy Masking

8 privacy masks programmable

Auto Focus

Auto / Semi-automatic / Manual

Lens

Focal Length

4.7-94.0mm, 20x

Zoom Speed

Approx.3s(Optical Wide~Tele)

Angle of View

58.3-3.2 degree (Wide~Tele

Minimum Working Distance

10~1,000mm(Wide~Tele

Aperture Range

F1.6~F3.5

Pan & Tilt

Pan Range

360°endless

Pan Speed

Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s

Tilt Range

-15°-90° (Auto Flip )

Tilt Speed

Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s

Proportional Zoom

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset

300

Patrol

8 patrols, up to 32 presets per patrol

Power loss recovery

Support

Park Action

Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

PTZ Position Display

ON/OFF

Infrared

IR irradiation distance

100m

IR irradiation angle

Adjustable by zoom

Network

Ethernet

10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution

1920×1080

Frame Rate

50Hz:25fps(1920×1080), 25fps (1280×720),

60Hz:30fps(1920×1080), 30fps (1280×720)

Main Stream

50Hz:25fps(1920×1080), 25fps (1280×720),

60Hz:30fps(1920×1080), 30fps (1280×720)

Sub Stream

50Hz:25fps(704×576), 25fps(352×288), 25fps(320×240);

60Hz:30fps(704×480), 30fps(352×240), 30fps(320×240)

Image Compression

H.264/MJPEG

ROI encoding

Support 4 areas with adjustable levels

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

No. of Simultaneous Users

Up to 20 users

Dual Stream

Support

Mini SD Card

Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording

User/Host Level

Up to 32 users,3 Levels: Administrator, Operator and User

Security Measures

User authentication (ID and PW),

Host authentication (MAC address)

IP address filtering

EZVIZ

Support

Client GUI

Camera Control

Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode

Date & Time Display

Time: Week: Date, 6 formats on the Client

Client

Support iVMS-4200

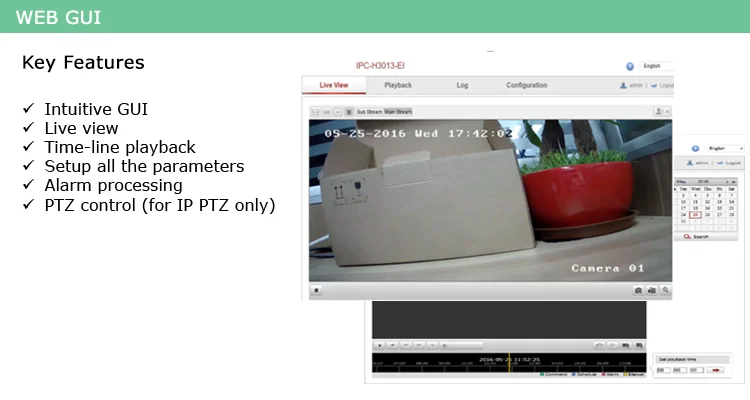

Web Browser

IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +

General

Menu Language

English

Power Supply

12 V DC

Power Consumption

Max. 20W

Working Temperature/Humidity:

-30°C ~ 65°C (-22°F ~ 149°F)

Protection Level

IP66 standard (outdoor dome)

TVS 4,000V lightning protection, surge protection and voltage transient protection

Mounting

Various mounting modes optional

Dimensions

Φ164.5(mm)×295(mm)

Weight

2kg (4.41lbs)

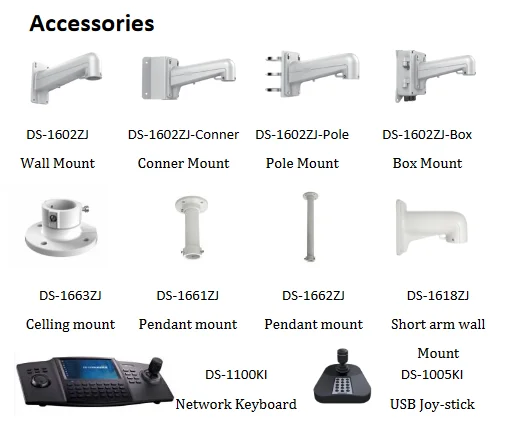

Mount Option

Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ

Product Details
Company Profile

Headquartered in Hangzhou (China), and sales & support office in Dallas (United States), Linovision is committed to be a leading integrated surveillance solutions provider. From 2007,Linovision started developing PC based DVR/NVR software for Hikvision & Dahua DVR cards, then their IPcameras, and become software partner of leading manufacturers.



We are proud of supplying a complete line of professional IP video surveillance products in affordable price, by working closely with top level manufacturers in China. And with continuous investment in the latest technologies, we can also provide comprehensive system integration service.



Moreover, we are also developing cloud based video management solution for the next generation of video surveillance system.



Our Mission: To be a global leading integrated video surveillance solutions provider.

Our Advantage

  • Consulting and Systems designing
  • Product qualification and recommendation
  • Project Integration service
  • End to End & One stop sourcing
  • Help to make website and marketing material
  • OEM hardware/software design for specific needs
  • Life cycle support
  • Regularly training and knowledge updates



Our Milestone





Exhibitions



YearExhibition NameAddressYearExhibition NameAddress
 2011 Public Security Exhibition Shenzhen, China 2012 ISC WEST 2012 Exhibition Las Vegas, USA
 2013 ISC WEST 2013 Exhibition Las Vegas, USA 2013 EXPOSEC Exhibition Sao Paolo, Brazil
 2014 ISC WEST 2014 Exhibition Las Vegas, USA 2014 EXPOSEC Exhibition Sao Paolo, Brazil
 2014 Security Essen Exhibition Essen, Germany 2015 ISC WEST 2015 Exhibition Las Vegas, USA
 2015 EXPOSEC Exhibition Sao Paolo, Brazil 2016 ISC WEST 2016 Exhibition Las Vegas, USA



Related Products



FAQ



Q. May I print our company logo on camera and NVR?

A: Of course, buyer logo is welcome in our company.
We have one production line for printing buyer logo.

Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products.

Q.What is your method of payment?
A: Pay via T/T, Western Union, Paypal, Escrow is welcome.

Q.What is Minimum Order Quantity?

A: Sample order is welcome, but the price is depend on the quantity.



Q: How to ship the goods?

A: For small parcels, we recommend to use the express, such as Fedex, DHL, TNT, UPS etc. For big order, we also have cooperated forwarders.
